Many-to-Many Relationships: Part One

Topics covered in this Ruby on Rails tutorial:

The has_one relationship, The has_and_belongs_to_many relationship

Exercise Overview

In this exercise, we’ll get the cart working with the ability to add items to it. In Rails Level 1, we explored the most basic model relationships with has_many and belongs_to. Now we’ll be looking at more complicated relationships between model objects.

1. If you completed the previous exercises, you can skip the following sidebar. We recommend you finish the previous exercises (8A–8D) before starting this one. If you haven’t finished them, do the following sidebar.

   If You Did Not Do the Previous Exercises (8A–8D)

   1. Close any files you may have open.
   2. Open the Finder and navigate to Class Files > yourname-Rails Class
   3. Open Terminal.
   4. Type cd and a single space (do NOT press Return yet).
   5. Drag the yourname-Rails Class folder from the Finder to the Terminal window and press ENTER.
   6. Run rm -rf nutty to delete your copy of the nutty site.
   7. Run git clone https://bitbucket.org/noble-desktop/nutty.git to copy the That Nutty Guy git repository.
   8. Type cd nutty to enter the new directory.
   9. Type git checkout 8D to bring the site up to the end of the previous exercise.
   10. Run bundle to install any necessary gems.
   11. Run yarn install --check-files to install JavaScript dependencies.

Setup

1. On the Desktop, navigate to Class Files > yourname-Rails Level 2 Class > That Nutty Guy HTML

2. Open cart.html in a browser. This is what we’ll be building now. Customers will be able to put products in the cart and then check out.

3. For this exercise, we’ll continue working with the nutty folder located in Desktop > Class Files > yourname-Rails Class > nutty

   If you haven’t already done so, we suggest opening the nutty folder in your code editor if it allows you to (like Sublime Text does).

4. Launch Terminal.

5. In Terminal, type cd and a space, then do the following:

   • Drag the nutty folder from Desktop > Class Files > yourname-Rails Class onto the Terminal window (so it will type out the path for you).
   • In Terminal, hit Return to change directory.

6. Run the Rails server by typing the following:

   rails s


7. In a browser, go to: localhost:3000 Feel free to check out the site. All the products should have their own images, and their specs should be nice, bulleted lists.

The Cart Controller

1. Switch to Terminal and hit Cmd–T to open a new tab.

2. Type the following to create a cart controller:

   rails g controller cart


3. In your code editor, open nutty > config > routes.rb

4. A few lines above the end keyword, add the following code shown in bold:

   resources :products, only: [:index, :show]
   resources :cart, only: [:index, :create]

   root 'products#index'


5. Save the file, then close it.

6. In your code editor, open nutty > app > controllers > cart_controller.rb.

7. Add the following code shown in bold:

   class CartController < ApplicationController
      def index
         @title = "Your Cart"
      end

      def create
      end
   end


8. Save the file.

   The next step would typically be to create a view.

9. Open a Finder window and navigate to: Desktop > Class Files > yourname-Rails Class > That Nutty Guy HTML

10. Open the cart.html file, select all of the code between <!-- begin cut here --> and <!-- end cut here -->, and hit Cmd–C to copy it.

11. Create nutty > app > views > cart > index.html.erb and open it in your editor.

12. Paste the copied code.

13. In a browser, go to: localhost:3000/cart Looking good so far!

14. Click the Cart link at the top right. Notice that this took us to cart.html. We need to fix this.

15. In your code editor, open nutty > app > views > layouts > application.html.erb

16. Around line 43, find the link for cart.html and change it to /cart as shown below:

    <a id="cart" href="/cart">


17. Save the file, then close it.

18. In a browser, go to localhost:3000 (or reload it if you’re already there).

19. Click the Cart link and now it should take you to localhost:3000/cart

    That’s the bare minimum to get us up and running. The cart data we currently have is not being driven by Rails yet.

Making the Cart Visible Only to Registered Users

First, we know we’re going to need a cart model. The question is, how are we going to know which customer a cart belongs to? To help us keep everything straight, let’s say you have to be logged in to the site to add products to the cart.

1. Go to Terminal and create a cart model by typing:

   rails g model cart customer:references


   The reason we’re adding customer:references is because we’re going to require the cart to belong to a customer account. It’s a way of making sure we only show the cart to the person it belongs to.

2. Apply it to the database by typing:

   rails db:migrate


3. In your code editor, open nutty > app > models > customer.rb

4. Add the bold code to make sure the customer model knows about the cart:

    devise :database_authenticatable, :registerable,
        :recoverable, :rememberable, :validatable

      has_one :cart
   end

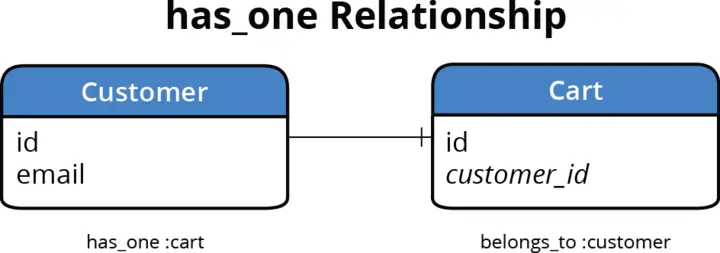

   As shown in the diagram below, has_one is a way of saying that the Customer and Cart models are connected and the foreign key (customer_id) is in the Cart model. If you have a one-to-one relationship (as opposed to many-to-one), you would say has_one to refer from the model that doesn’t have the foreign key (Customer) over to the one that does (Cart).



   NOTE: The diagram above is an entity-relationship model. The line connecting the two models shows the relationship between them. In this case, the has_one relationship is shown by using the following line . In future diagrams in this workbook, you’ll also see the following line for a has_many relationship.

5. Let’s next deal with loading the cart in the controller. Save the file, then close it.

6. In your code editor, open nutty > app > controllers > cart_controller.rb

7. We can only load the customer’s cart if the customer is signed in. So let’s check that before we go any further. We should also create a cart for the customer in case it doesn’t exist. Add the bold code to specify what happens if a customer is signed in or not:

   class CartController < ApplicationController
      def index
         @title = "Your Cart"
         if customer_signed_in?
            current_customer.create_cart if current_customer.cart.nil?
            @cart = current_customer.cart
         else
            redirect_to new_customer_session_path, alert: "Please sign in to access your cart." and return
         end
      end


   The first part of the code checks if the customer is signed in. If they don’t have a cart, one will be created for them. If the customer is not signed in, they will see an alert and be redirected to sign in. and return can be very important because otherwise, even though the customer was redirected, any code beneath it would continue executing.

8. Save the file.

9. In a browser, go to: localhost:3000

10. Click on the Cart link at the upper right.

11. In order to sign in, you’ll need to create an account. Click the Sign up link.

12. Enter an email and password, then click Sign Up.

13. After signing in, go to the Cart page. You should have no problem viewing it now.

Many-to-Many Relationships

We don’t yet have a way to associate products with the Cart model. has_many and belongs_to are not going to be enough for us here. For one thing, where would the foreign key go? If the cart_id key went on the products table, then each product could only ever be put in one cart, which obviously won’t work! On the other hand, putting the foreign key, like a product_id key, in the Cart model would limit us to one product per customer. What we need to implement here is a many-to-many relationship. Rails provides a plenty of tools for us to do just that.

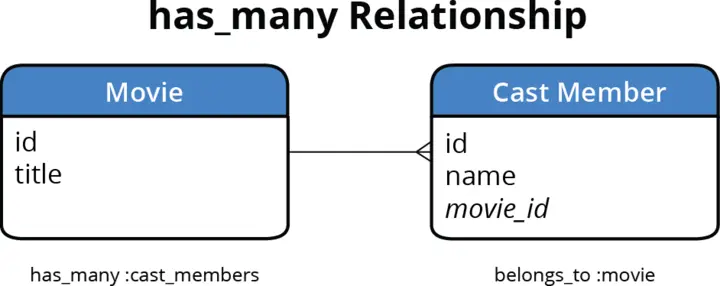

NOTE: For a refresher of the has_many and belongs_to relationship with an example of a situation in which that model relationship would be suitable, read the sidebar at the end of the exercise.

The most basic kind of many-to-many relationship is has_and_belongs_to_many. This relationship allows each Product to have any number of carts, and each Cart to have any number of products in it. To implement this, we have to manually create a join table. A join table is a special database table, which keeps track of which products and which carts are associated.

1. Let’s create a migration to do that. In Terminal, type:

   rails g migration create_carts_products cart:references product:references


   NOTE: The convention for join tables in Rails is that they’re named alphabetically by model in the plural. So if you’re relating cart and product, “c” comes before “p” and make them both plural.

2. Apply the migration by typing:

   rails db:migrate


3. In your code editor, open nutty > app > models > cart.rb.

4. Add the following bold code to let the cart model know about this relationship:

   class Cart < ActiveRecord::Base
      belongs_to :customer

      has_and_belongs_to_many :products
   end


5. Save the file, then close it.

6. In your code editor, open nutty > app > models > product.rb.

7. We also need to let the product model know about this relationship:

   validates :price, numericality: true

   has_and_belongs_to_many :carts

   has_one_attached :image


   That’s enough to create a many-to-many relationship between those two model objects.

8. Save the file and then close it.

Making the Add to Cart Button Functional

Let’s turn the Add To Cart button into a proper form so we can put items in the cart.

1. In a browser, go to: localhost:3000

2. Click on Tinfoil Hat.

3. Check out the Add To Cart button. Of course it doesn’t work yet, but we’re about to change that. To do that, we’re going to add a simple form.

   While building the Flix site, we used Rails’s form_with model: @movie helper to build a form around the movie model. In this case, we don’t necessarily have a cart yet—we don’t even know if the user is logged in. Fortunately Rails provides another approach to forms—one that doesn’t require a model object to work. This uses the form_with url: helper.

4. In your code editor, open nutty > app > views > products > show.html.erb

5. Around line 25, add the following bold code:

   <p class="star-rating-large five ir">Star Rating</p>
   <%= form_with url: '/cart', method: :post do %>

   <% end %>

   <input type="number" name="quantity" min="1" max="100" value="1">


   When submitted, this form will send the contents of our form to ‘/cart’ using the POST method.

   IMPORTANT TO KNOW: POSTing to the root of a controller’s route calls the create method in cart_controller. That’s why we enabled the :index and :create methods in routes.rb earlier.

6. Add the following bold code:

   <%= form_with url: '/cart', method: :post do %>
      <%= hidden_field_tag :product_id, @product.id %>
      <%= number_field_tag :quantity, 1, min: 1, max: 100 %>
      <%= button_tag id: 'add-cart', class: 'btn btn-red btn-md' do %>
         <span class="glyphicon glyphicon-shopping-cart"></span> Add to Cart
      <% end %>
   <% end %>


   NOTE: The hidden_field_tag lets the form know which product goes in the cart. The number_field_tag creates a field for the quantity. The button_tag is our submit button.

7. Delete the old cart button code shown in bold below (around lines 32–37):

   <input type="number" name="quantity" min="1" max="100" value="1">
   <a href="cart.html">
      <button type="button" id="add-cart" class="btn btn-red btn-md">
         <span class="glyphicon glyphicon-shopping-cart"></span> Add to Cart
      </button>
   </a>


8. Save the file.

Making Sure Customers Are Signed In

1. In your code editor, open nutty > app > controllers > cart_controller.rb

   Before a customer can add anything to their cart, they need to have a cart. Before they can have a cart, they need to be signed in. We could check if they are signed in by adding code to the create method… but that wouldn’t be very DRY because we would be repeating code.

2. Instead, cut (Cmd–X) the following bold code:

   class CartController < ApplicationController
      def index
         @title = "Your Cart"
         if customer_signed_in?
            current_customer.create_cart if current_customer.cart.nil?
            @cart = current_customer.cart
         else
            redirect_to new_customer_session_path, alert: "Please sign in to access your cart." and return
         end
      end


3. Between the create method and the final end keyword, create a private (internal controller) method as shown in bold below:

      def create
      end

      private
         def load_cart_or_redirect_customer

         end
   end


4. Paste (Cmd–V) the code you cut into the method as shown below:

   private
      def load_cart_or_redirect_customer
         if customer_signed_in?
            current_customer.create_cart if current_customer.cart.nil?
            @cart = current_customer.cart
         else
            redirect_to new_customer_session_path, alert: "Please sign in to access your cart." and return
         end
      end


   NOTE: Remember that private controller methods don’t necessarily lead to a page—they are just called internally by the controller.

5. We want the private method to run before the index or create pages so the sign in code will run before customers view the cart or add anything to it. Add this code:

   class CartController < ApplicationController
      before_action :load_cart_or_redirect_customer

      def index


Adding Products to the Cart

1. Now we can load up the cart with products. Around line 9, type:

   def create
      product = Product.find(params[:product_id])
      @cart.products << product
      @cart.save
      redirect_to '/cart', notice: "#{product.title} was added to your cart." and return
   end


   NOTE: Remember, from show.html.erb, we’re going to pass ourselves the product’s id as a hidden field so we will get it back in the params hash. The product is then added to the cart. Then the cart is saved. Finally the customer is redirected to the cart page with a notice that the product was added successfully.

2. Save the file.

3. Let’s try it out and see if it works. In the browser, go back to the Tinfoil Hat page and reload it.

4. Click Add To Cart.

   It’s working, but our cart is still showing the sample data. We need to implement display of the actual items in the cart.

5. In your code editor, open nutty > app > views > cart > index.html.erb

6. Around lines 20 and 36, wrap the existing code in the following bold tags:

   <tbody>
      <% @cart.products.each do |product| %>
         <tr>
            <td id="thumbnail-div" class="hidden-xs">


   Code Omitted To Save Space

            <td class="hidden-xs">$19.99</td>
            <td class="total-price">$19.99</td>
         </tr>
      <% end %>
         <td id="thumbnail-div" class="hidden-xs">


7. We only need one row to make the cart show the correct item(s). Before we make that row dynamic, first delete the extra row (around lines 37–49):

   <td id="thumbnail-div" class="hidden-xs">
      <a href="#"><img src="img/product_images/toothbrush.jpg" class="cart-thumbnail" alt="Pantone Toothbrush"></a>
   </td>
   <td>
      <a href="#"><p>Pantone Toothbrush Set</p></a>
      <p class="gray-text">Item #NG00921</p>
   </td>
   <td><input type="number" name="quantity" min="1" max="100" value="2">
      <a href="#"><span class="glyphicon glyphicon-refresh"></span>update</a>
      <a href="#"><span class="glyphicon glyphicon-remove"></span>remove</a>
   </td>
   <td class="hidden-xs">$9.99</td>
   <td class="total-price">$19.98</td>


8. Around line 23, highlight the link and image:

   <a href="product.html"><img src="img/product_images/tinfoil-hat.jpg"
   class="cart-thumbnail" alt="Tinfoil Hat"></a>


9. Delete it and replace it with the bold code shown below:

   <td id="thumbnail-div" class="d-none d-md-table-cell">
      <%= link_to product do %>
         <%= image_tag url_for(product.image.variant(resize_to_limit: [200, 200])), alt: product.title, class: 'cart-thumbnail' %>
      <% end %>
   </td>


10. Around line 28, find the following code and highlight it:

    <a href="product.html"><p>Tinfoil Hat</p></a>


11. Replace it with the bold code as shown:

    <td>
       <%= link_to product do %>
          <p><%= product.title %></p>
       <% end %>
       <p class="gray-text">Item #NG45636</p>


12. Replace the item number as shown (around line 31):

       <p class="gray-text">Item #<%= product.sku %></p>


    We’ll implement the quantity, update, and remove actions later.

13. Replace the product prices ($7.99) as shown (around lines 37–38):

    <td class="d-none d-md-table-cell"><%= number_to_currency product.price %></td>
    <td class="total-price"><%= number_to_currency product.price %></td>


14. Save the file.

15. Go back to the cart in the browser and reload it: localhost:3000/cart

    Now it should only have Tinfoil Hat in it.

16. Try adding another product. Click on the logo at the top left to go home.

17. Click any product to go to its page. Then click the Add To Cart button.

    Voilà! Now we should have the two items we added to our cart!

How Do We Implement the Quantity Field?

1. While we’re still looking at the cart in the browser, take a look at the Quantity field. We haven’t done anything to make it functional yet.

   How do we implement this Quantity field? Does it become a property of the product? That wouldn’t make sense. Does it become a property of the cart?

   As we strategize what to do about the Quantity field, we begin to see the problem with the has_and_belongs_to_many relationship. It’s sufficient for the most basic many-to-many relationships. However, we’re already at an impasse here in our implementation: we need to tack on some additional metadata to the relationship between two models.

   The Quantity field refers to the relationship of the product and the cart. So we somehow need to get the quantity into the join table we created in this exercise. With a simple join table that isn’t a model object of its own, there’s no room there to do it.

   In the next exercise, we’ll look at a more powerful way to handle these kinds of relationships.

2. Leave your code editor and browser open, as well as the server running in Terminal so we can continue with them in the following exercises.
